Grinding Ball Mill Miller Machine For Grinding Ball Mill Laboratory
Horizontal Planetary Ball Mill For Powder Making
Product Introduction

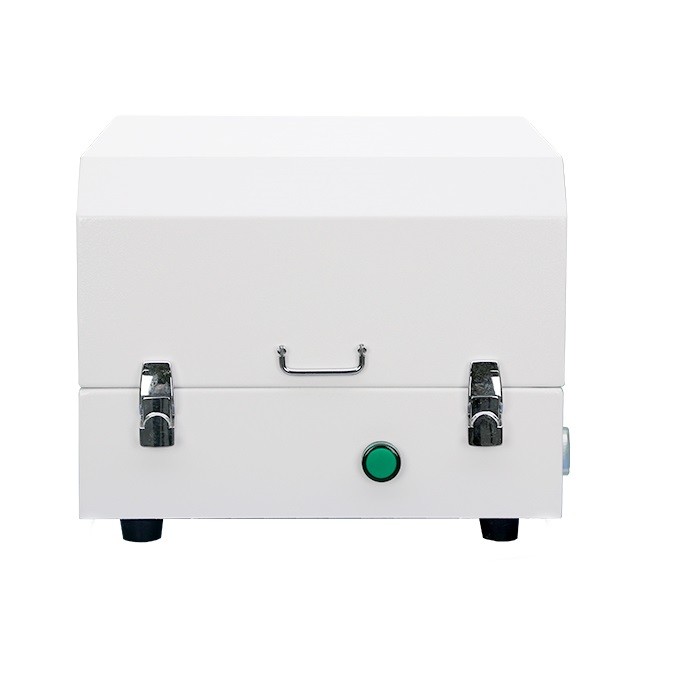

VBM-081W is an 80ml, 1-station high-speed pendulum ball mill that
utilizes vibration to form three-dimensional grinding energy,
achieving fast and efficient small-scale laboratory grinding ball
mills.
Performance Parameter
| apply | Brittle, soil, fiber, strong oxidation, corrosive powder
pollution-free grinding | application area | Medicine, medicine, food, chemicals, synthetic materials,
electronics, engineering, metallurgy, glass |
| sample characteristic | Soft / hard material, brittle material | The principle of crushing | Friction force, the collision force |
| Milling method | Dry method or wet method | cryogrinding | customizable |
| Vacuum grinding | yes | Conventional crushing time | 3-5min |
| Feed size | ＜1mm | Finishing particle size | 0.1um |
| Maximum grinding amount of the batch | 80ml | Number of grinding platforms | 1pcs |
| ratio of transmission | / | Ball grinding tank speed | 1150r/min |
| Ball grinding tank type | utility-type | noise | 60-75 db (depending on the ground ball and sample placed in the
ball grinding tank) |
| Ball grinding tank material | Stainless steel / nylon / polyurethane / teFE / polypropylene /
polyethylene / agate / alumina / zirconia, etc | Ball grinding tank size | 80ml, and the remaining sizes can be customizable |
| Grinding ball material | Stainless steel / alumina / zirconia / calcium carbide, etc | Grinding ball size | 3mm 5mm 8mm 10mm |
| operator schema | Mechanical table of mechanical table (time can be set) | Timed setting | Scale display, 00:00:01 to 00:30:00 |
| drive | A 24V single-phase asynchronous AC motor | driving power | 0.25kw |
| driving voltage | 220V | Motor frequency | 50Hz |
| mains connections | uniphase | Body size (width * depth * height) | 365*415*264 |
| net weight | 40kg (no tank and pendant weight) | appendix | Hanging gear, 14 mesh screen, belt, disassembly tools, manual,
warranty card, certificate. |
Application field
Used in new energy research, medicine, food, chemical,
environmental protection, synthetic materials, electronics,
metallurgy, engineering and other industries of scientific research
and product updates. The products include: electronic ceramics,
structural ceramics, magnetic materials, lithium cobalt oxide,
lithium manganese oxide, catalyst, phosphor, long persistence
luminescent powder, rare earth polishing powder, electronic glass
powder, fuel cell, ceramic capacitor, zinc oxide varistor,
piezoelectric ceramics, nanomaterials, wafer ceramic capacitor,
MLCC and so on.
